PRODUCT DESCRIPTION

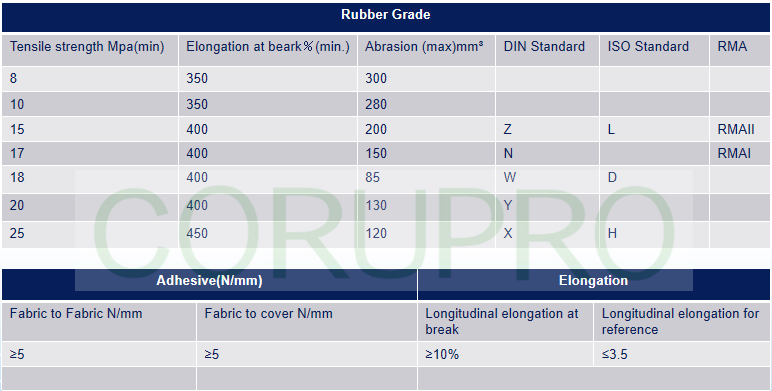

DIN STANDARD

12Mpa

Z

N

W

Y

X

Tensile strength:min.

12Mpa

15MPa

17MPa

18MPa

20MPa

25MPa

Abrasion Loss: max.

280mm3

200mm3

180mm3

90mm3

150mm3

120mm3

Belt Spec. Molded edge







EP250/2-3+1







EP315/2-3+1







EP315/2-4+2







EP400/3-4+2







EP400/3-6+2







EP500/4-5+2







EP630/4-6+2







EP630/4-8+3







EP800/4-6+2







EP800/4-8+3







Please tell us your specification for quotation.

1- Adhesion: min.5N/mm.

2- molded edge or cut edge

RMA STANDARD

RMA-II

RMA-II

RMA-II

RMA-1

RMA-1

RMA-1

Tensile strength:min.

12Mpa

14MPa

15MPa

17MPa

20MPa

25MPa

Abrasion Loss: max.

280mm3

150mm3

200mm3

180mm3

150mm3

120mm3

Belt Spec. Cut edge







2Ply220PIW

(EP200 x 2)

1/8 x 1/16”(3.2+1.6)




3/16 x 1/16”(4.8+1.6)




3Ply330PIW

(EP200X3)

3/16 x 1/16”(4.8+1.6)




1/6 x 1/16”(6.4+1.6)





4Ply440PIW

(EP200X4)

3/16 x 1/16”(4.8+1.6)




1/6 x 1/16”(6.4+1.6)




3Ply600PIW

(EP350X3)

1/6 x 1/16”(6.4+1.6)




3/8 x 1/8”(9.6+3.2)





Please tell us your specification for quotation.


Features:
With the advantages of thin belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it’s the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance,heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in moist environment.
Structure:
It uses polyester canvas as carcass, its structure is the same as General-used Conveyor Belt.
types:
Besides General-used EP conveyor belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.
